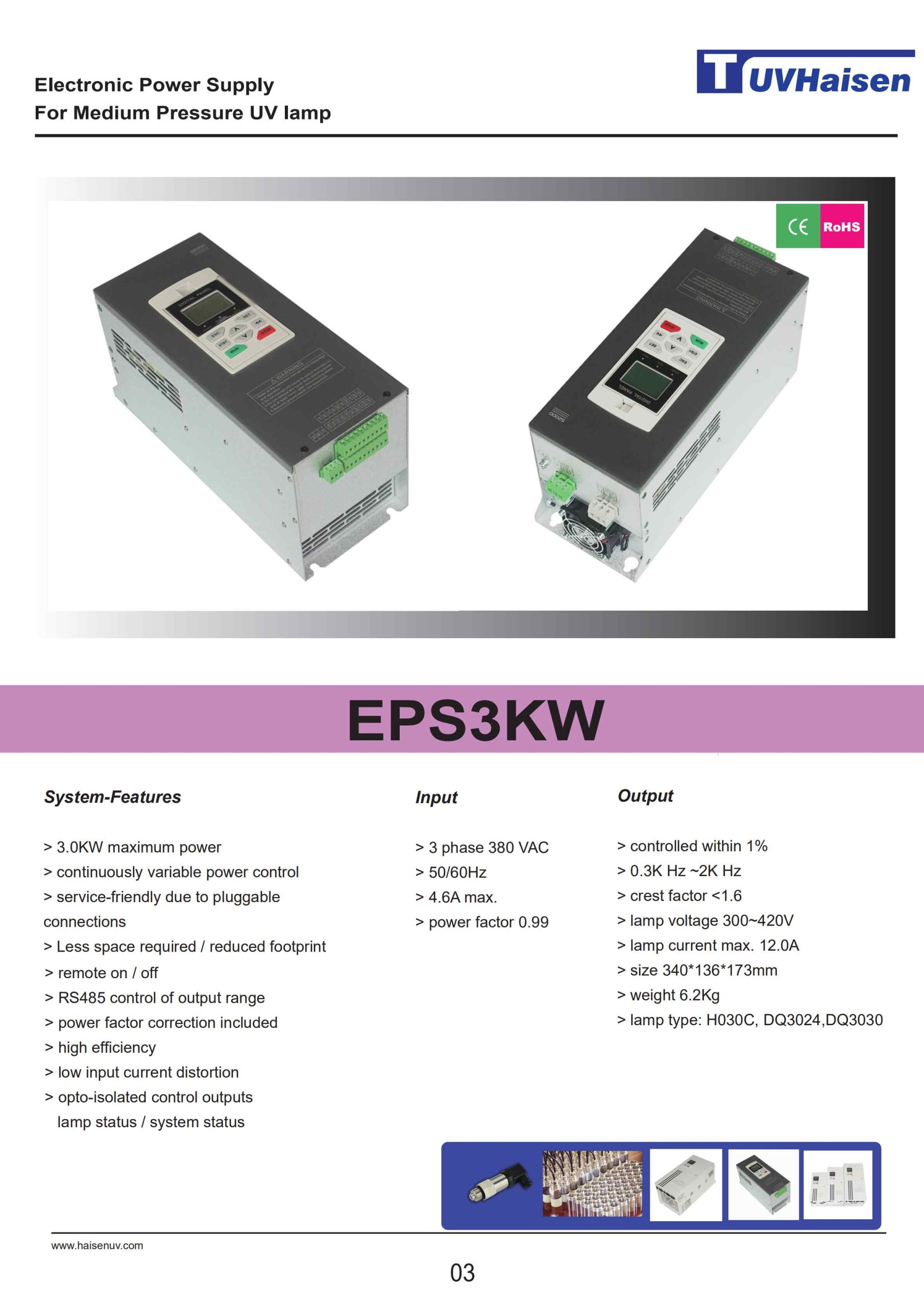

UV Medium Pressure Ballast EPS3KW

Description

UV Medium Pressure Ballast Features

UV Medium Pressure Ballast EPS3KW can drive Medium Pressure UV Lamps with reliable quality, long warranty and low repair rate

> 3.0KW maximum power
> continuously variable power control
> service-friendly due to pluggable
connections
> Less space required / reduced footprint

> remote on / off
> RS485 control of output range
> power factor correction included
> high efficiency
> low input current distortion
> opto-isolated control outputs
lamp status / system status

Input

> 3 phase 380 VAC
> 50/60Hz
> 4.6A max.
> power factor 0.99

Output

> controlled within 1%
> 0.3K Hz ~2K Hz
> crest factor <1.6
> lamp voltage 300~420V
> lamp current max. 12.0A
> size 340*136*173mm
> weight 6.2Kg
> lamp type: H030C, DQ3024,DQ3030

Haisen UV Medium Pressure Ballast EPS3KW
