UV Medium Pressure Ballast EPS2KW

Description

UV Medium Pressure Ballast Features

UV Medium Pressure Ballast EPS2KW can drive Medium Pressure UV Lamps with reliable quality, long warranty and low repair rate

> 2.0KW maximum power
> continuously variable power control
> service-friendly due to pluggable
connections
> Less space required / reduced footprint

> remote on / off
> RS485 control of output range
> power factor correction included
> high efficiency
> low input current distortion
> opto-isolated control outputs
lamp status / system status

Input

> 1 phase 220 VAC
> 50/60Hz
> 9.0A max.
> power factor 0.70

Output

> controlled within 1%
> 0.3K Hz ~2K Hz
> crest factor <1.6
> lamp voltage 160~220V
> lamp current max. 13.0A
> size 340*136*173mm
> weight 6.2Kg
> lamp type: H020C, DQ2023

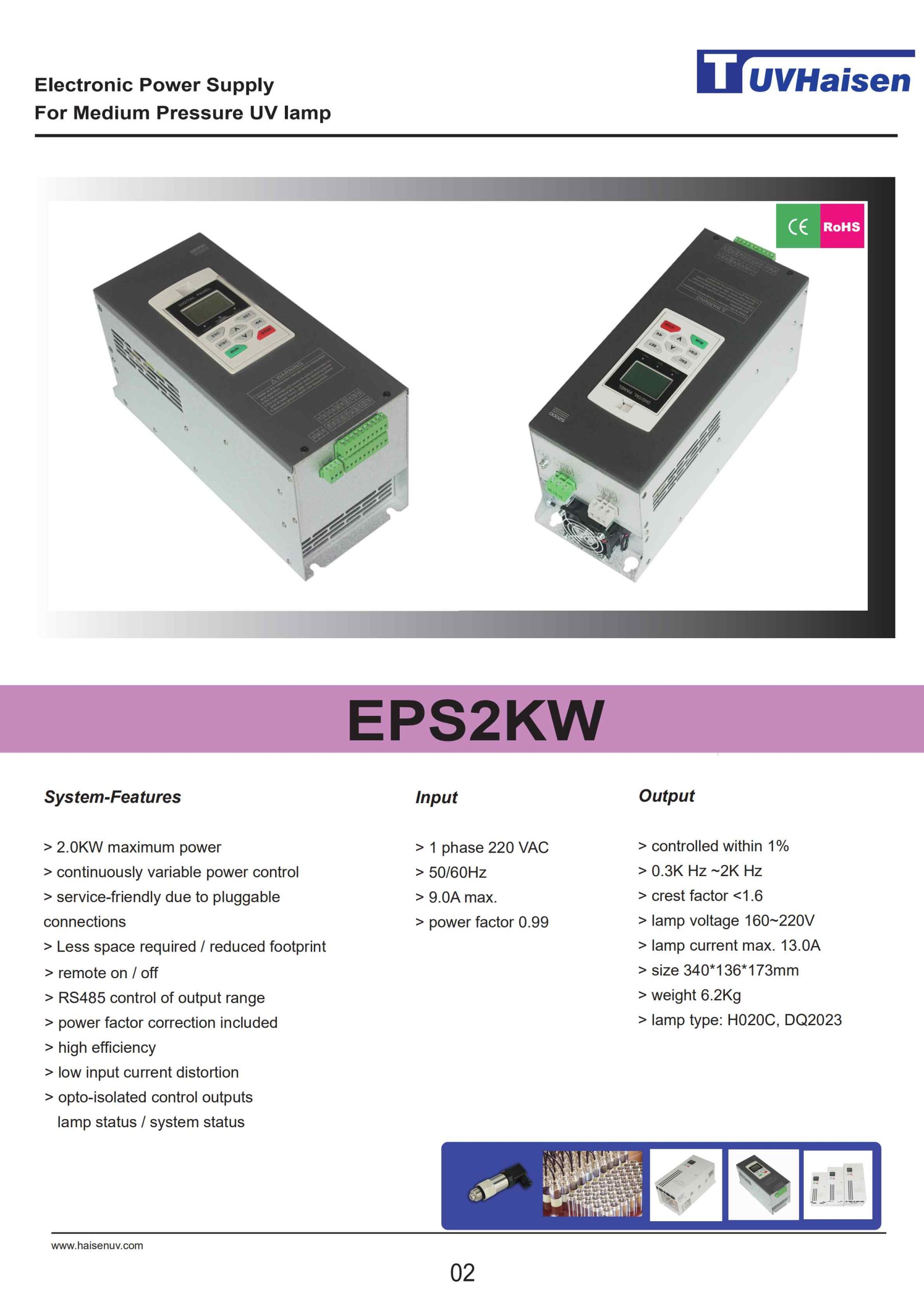

Haisen UV Medium Pressure Ballast EPS2KW
