UV Light Ballast EPS40W/425mA (110-240V)

UV Light Ballast Application

UV Light Ballast EPS40W/425mA  can match GPH212~893T5L
TUV16W, TUV20W, TUV36T5L,TUV36W low-pressure UV lamps It can be used in air and surface purification and disinfection systems for Residential market or commercial market.

UV Light Ballast Advantages

> Low repair rate make you no longer worry about the after sales problem.

> Competitive price can save your cost for manufacture your uv desinfection system.

> CE,UL, CUL approval the stable quality and performance.

> Standard or customized version can be provided on customer request

> 110-240V Global universal voltage

Features

> electronic ballast for one-lamp operation
> to be used with four-wire lamps
> Preheat start
> status indication via 5V DC signal output indicators
DC 5V: lamp on
DC 0V: lamp fault
*connected LED

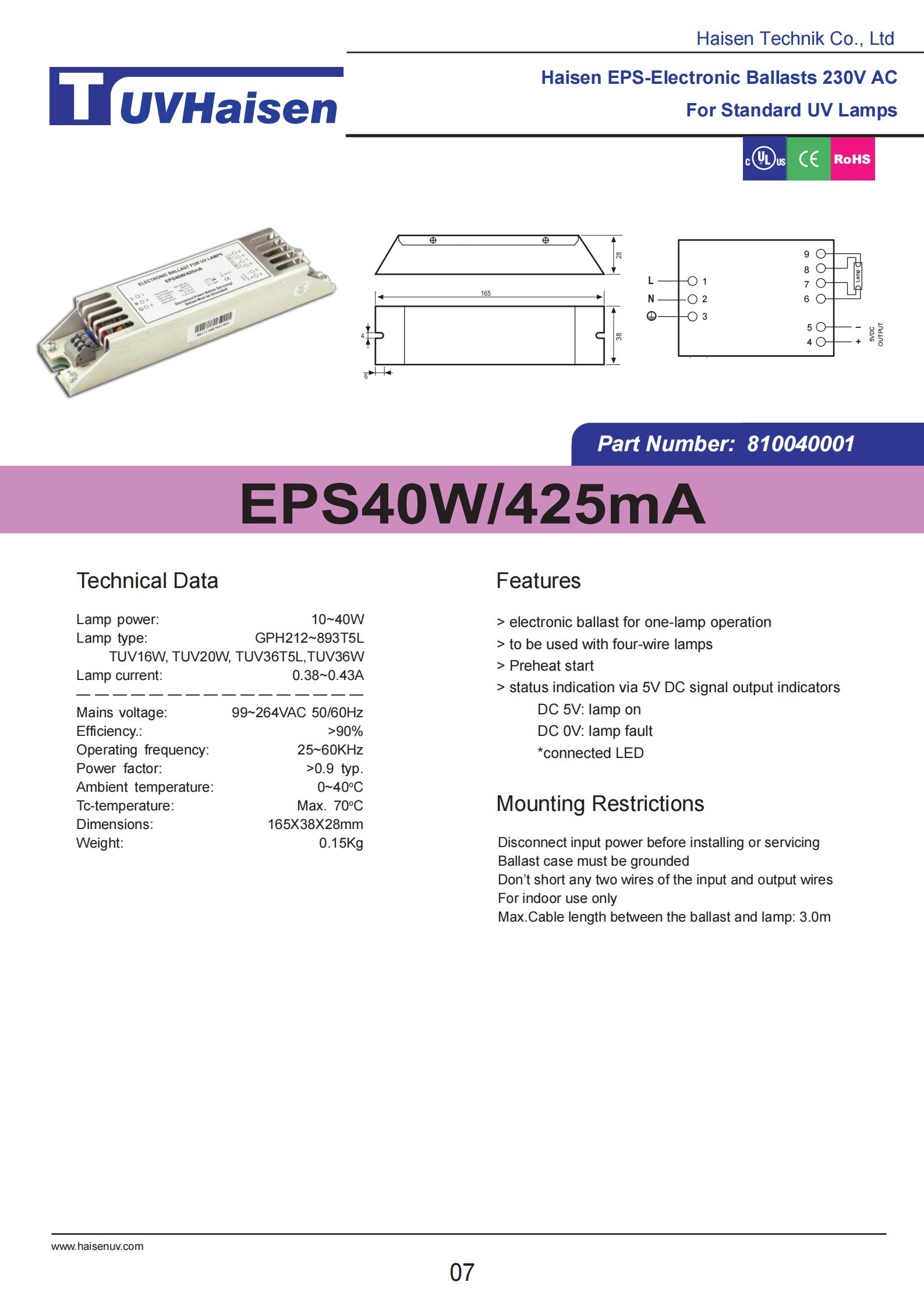

UV Ballast Technical Data

Lamp power: 10~40W
Lamp type: GPH212~893T5L
TUV16W, TUV20W, TUV36T5L,TUV36W
Lamp current: 0.38~0.43A
— — — — — — — — — — — — — — — —
Mains voltage: 99~264VAC 50/60Hz
Efficiency.: >90%
Operating frequency: 25~60KHz
Power factor: >0.9 typ.
Ambient temperature: 0~40^oC
Tc-temperature: Max. 70^oC
Dimensions: 165X38X28mm
Weight: 0.15Kg

Mounting Restrictions
Disconnect input power before installing or servicing
Don’t short any two wires of the input and output wires
For indoor use only
Max.Cable length between the ballast and lamp: 1.5m
