Germicidal Lamp Electronic Ballast EPS2X21/425mA (110-240V)

Description

Germicidal Lamp Electronic Ballast Application

Germicidal Lamp Electronic Ballast EPS2X21W/425mA  can match GPH150~357T5L  TUV16W, TUV20W low-pressure UV lamps two uv lights. It can be used in air and surface purification and disinfection systems for Residential market or commercial market.



 Advantages

> Low repair rate make you no longer worry about the after sales problem.

> Competitive price can save your cost for manufacture your uv desinfection system.

> CE,UL, CUL approval the stable quality and performance.

> Standard or customized version can be provided on customer request

> 110-240V Global universal voltage



Features

> electronic ballast for two-lamps operation
> to be used with four-wire lamps
> Preheat start
> status forwarding
potential free relay contacts for lamp on / lamp fault
relay activated:lamp on
> relay contacts:
potential free,load:50~500mA at 24~277V AC
50~500mA at 5~30V DC

Technical Data
Lamp power: 10~40W
Wiring diagram A
Lamp type: GPH150~357T5L
TUV16W, TUV20W
Wiring diagram B
Lamp type: GPH436~843T5L
TUV36W
Lamp current: 0.38~0.43A
— — — — — — — — — — — — — — — —
Mains voltage: 110~240VAC 50/60Hz
Efficiency.: >90%
Operating frequency: 25~60KHz
Power factor: >0.9 typ.
Ambient temperature: 0~40oC
Tc-temperature: Max. 70oC
Dimensions: 165X38X28mm
Weight: 0.15Kg

Mounting Restrictions
Disconnect input power before installing or servicing
Don’t short any two wires of the input and output wires
For indoor use only
Max.Cable length between the ballast and lamp: 1.5m

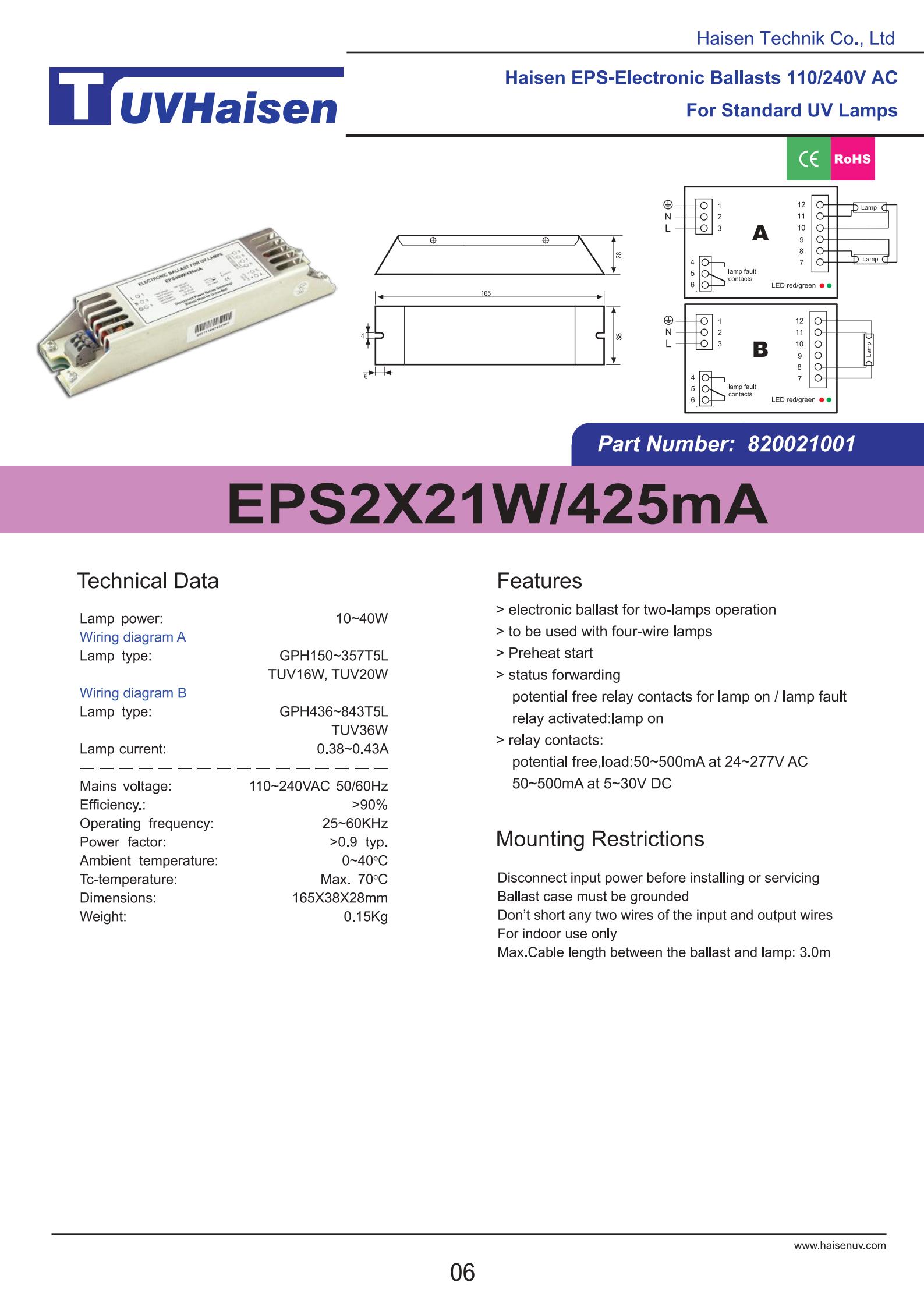

ultravoilet ballast EPS2X21W/425mA FOR UV LIGHTS

UV BALLAST EPS40W/425mA
