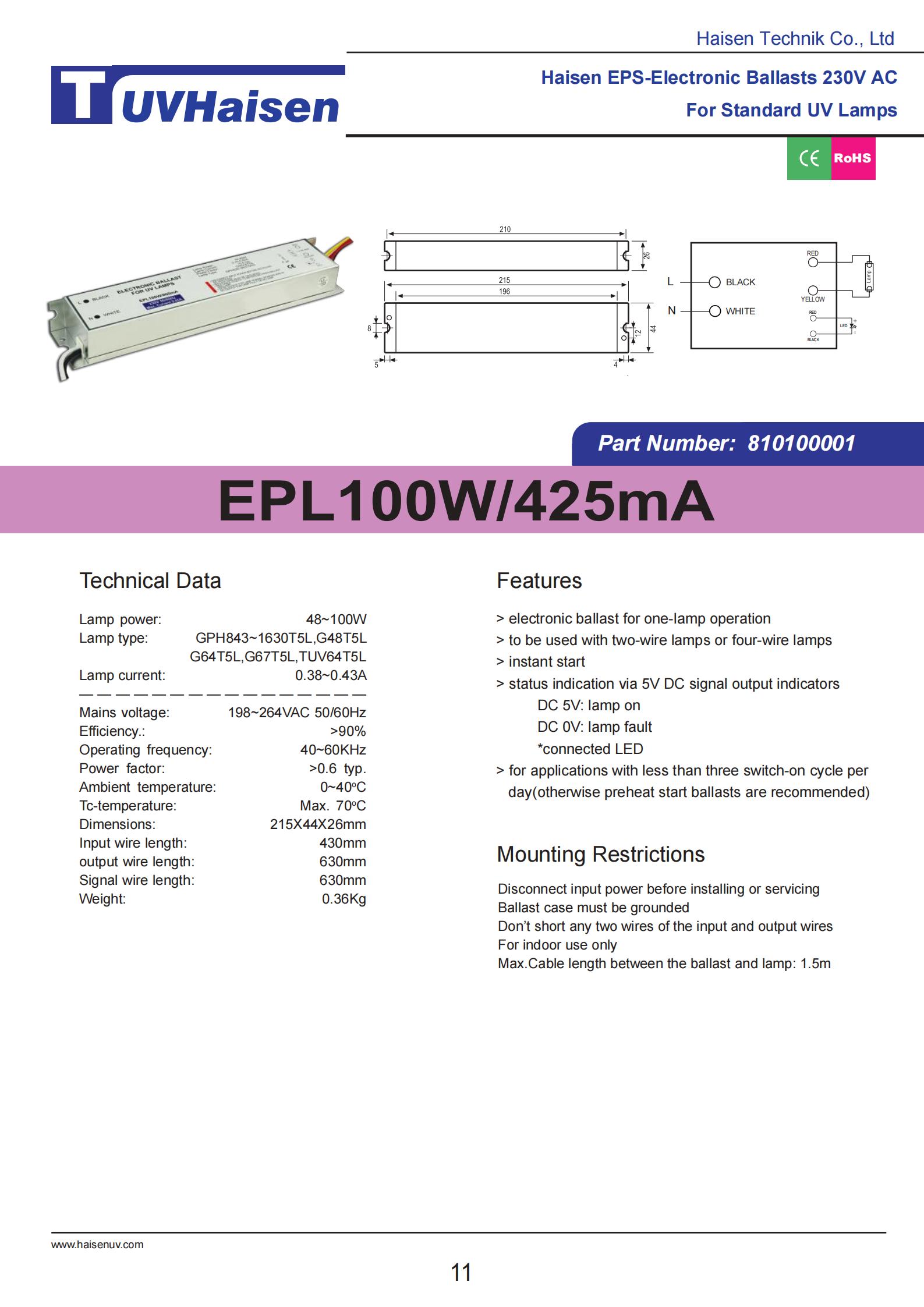

UV Lamp Power Supply EPL100W/425mA (230V)

UV Lamp Power Supply Application

UV Lamp Power Supply EPL100W/425mA  can match GPH843~1630T5L ,G48T5LG64T5L,G67T5L,TUV64T5L low-pressure UV lamps It can be used in air and surface purification and disinfection systems for Residential market or commercial market.

 Advantages

> Low repair rate make you no longer worry about the after sales problem.

> Competitive price can save your cost for manufacture your uv desinfection system.

> CE approval the stable quality and performance.

> Standard or customized version can be provided on customer request

Features

> electronic ballast for one-lamp operation
> to be used with two-wire lamps or four-wire lamps
> instant start
> status indication via 5V DC signal output indicators
DC 5V: lamp on
DC 0V: lamp fault
*connected LED
> for applications with less than three switch-on cycle per
day(otherwise preheat start ballasts are recommended)

Technical Data

Lamp power: 48~100W
Lamp type: GPH843~1630T5L,G48T5L
G64T5L,G67T5L,TUV64T5L
Lamp current: 0.38~0.43A
— — — — — — — — — — — — — — — —
Mains voltage: 198~264VAC 50/60Hz
Efficiency.: >90%
Operating frequency: 40~60KHz
Power factor: >0.6 typ.
Ambient temperature: 0~40oC
Tc-temperature: Max. 70oC
Dimensions: 215X44X26mm
Input wire length: 430mm
output wire length: 630mm
Signal wire length: 630mm
Weight: 0.36Kg

Mounting Restrictions
Disconnect input power before installing or servicing
Don’t short any two wires of the input and output wires
For indoor use only
Max.Cable length between the ballast and lamp: 1.5m
