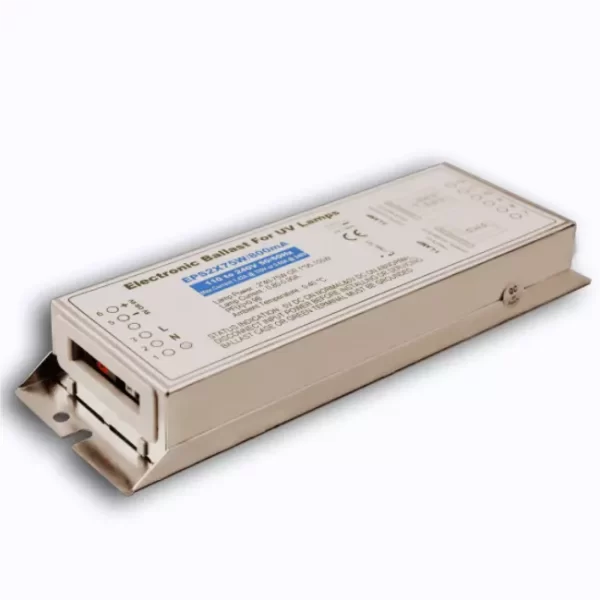

UV Lamp Ballast High Output EPS2X75W/800mA/UL (230V)

Description

UV Lamp Ballast High Output Application

Haisen UV Germicidal  Ballast EPS2X75W/800mA for High Output UV lamps (HO UV Lamp, 800mA) can be used in uv water, air and surface purification and disinfection system for Residential and Commercial and industry market. Can turn on 2 uv lights.



 Advantages

> Low repair rate make you no longer worry about the after sales problem.

> Competitive price can save your cost for manufacture your uv desinfection system.

> CE,UL, CUL approval the stable quality and performance.

> Standard or customized version can be provided on customer request

> 110-240V Global universal voltage



Features

> electronic ballast for one-lamp or two-lamps operation
> to be used with four-wire lamps
> Preheat start
> status indication via 5V DC signal output indicators
DC 5V: lamp on
DC 0V: lamp fault
*connected LED

Technical Data

Lamp power: 10~75W
Wiring diagram A
Lamp type: GPH436~843T5LHO
TUV36T5LHO
Wiring diagram B
Lamp type: GPH1148~1554T5LHO
TUV48T5LHO,TUV64T5LHO
Lamp current: 0.75~0.85A
— — — — — — — — — — — — — — — —
Mains voltage: 198~264VAC 50/60Hz
Efficiency.: >90%
Operating frequency: 25~60KHz
Power factor: >0.9 typ.
Ambient temperature: 0~40oC
Tc-temperature: Max. 70oC
Dimensions: 200X64X29mm
Weight: 0.45Kg

Mounting Restrictions

Wire gauge:0.5-1.5mm², strip length: 8mm
Disconnect input power before installing or servicing
Ballast case must be grounded
Don’t short any two wires of the input and output wires
For indoor use only
Max.Cable length between the ballast and lamp:5.0m

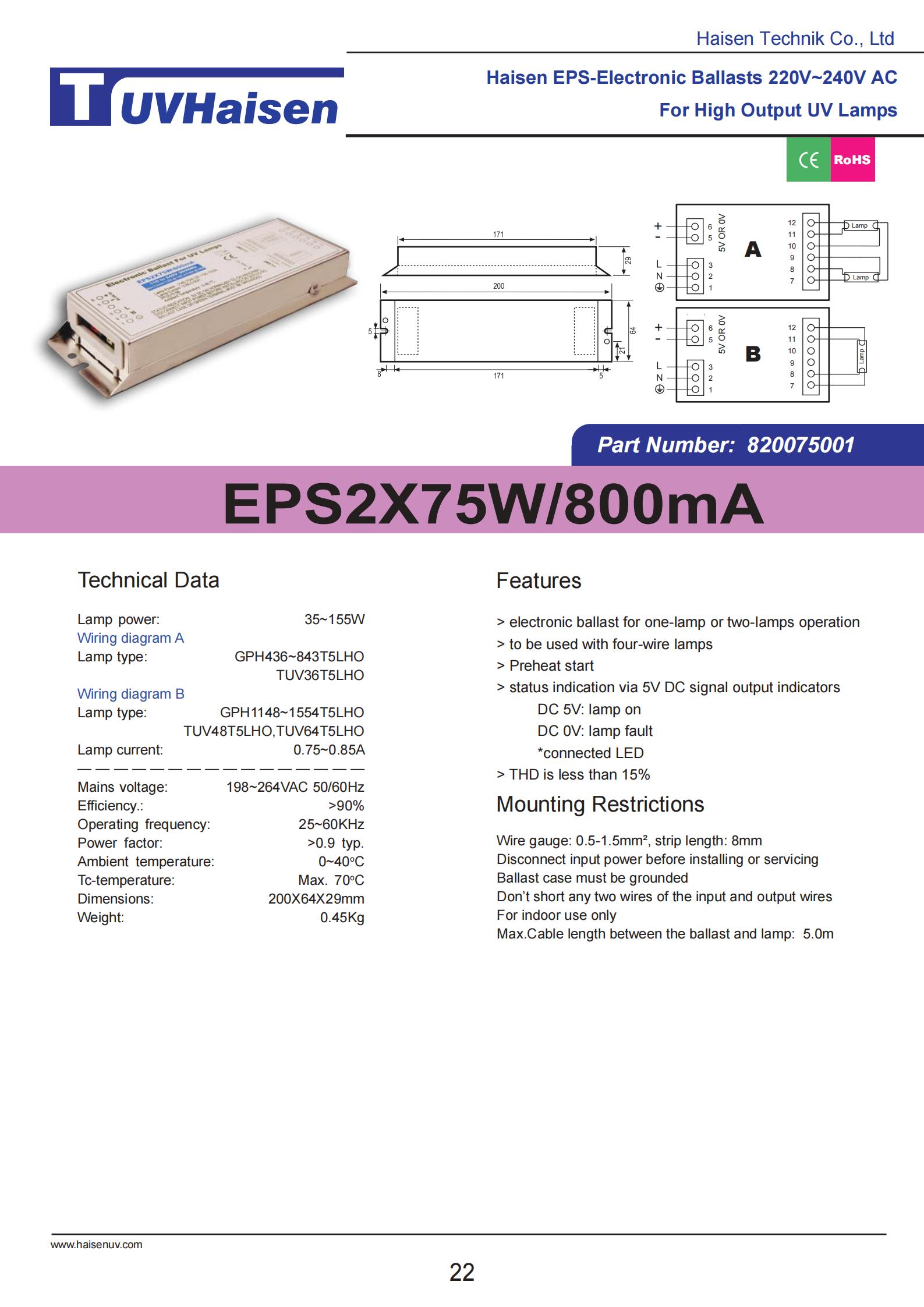

 UV Germicidal Ballast EPS2x75W/800mA for uv lamp
