UV BALLAST EPS400W/1.8-3.8A (230V)


Haisen UV Ballast Application

UV Ballast EPS400W/1.8~3.8A for Amalgam UV lamps use in uv water purification and disinfection system for Industrial  market,Industrial sewage treatment, Municipal wastewater treatment.


Haisen UV Ballast Advantages

> Low repair rate less then 0.5% make you no longer worry about the after sales problem.

> Competitive price can save your cost for manufacture your uv desinfection system.

> CE approval the stable quality and performance.

> Standard or customized version can be provided on customer  request



> electronic ballast for one-lamp operation
> to be used with four-wire lamps
> Preheat start
> Status forwarding
potential free relay contacts for lamp on / lamp fault
relay activated:lamp on
> relay contacts:
potential free,load:50~500mA at 24~277V AC
50~500mA at 5~30V DC

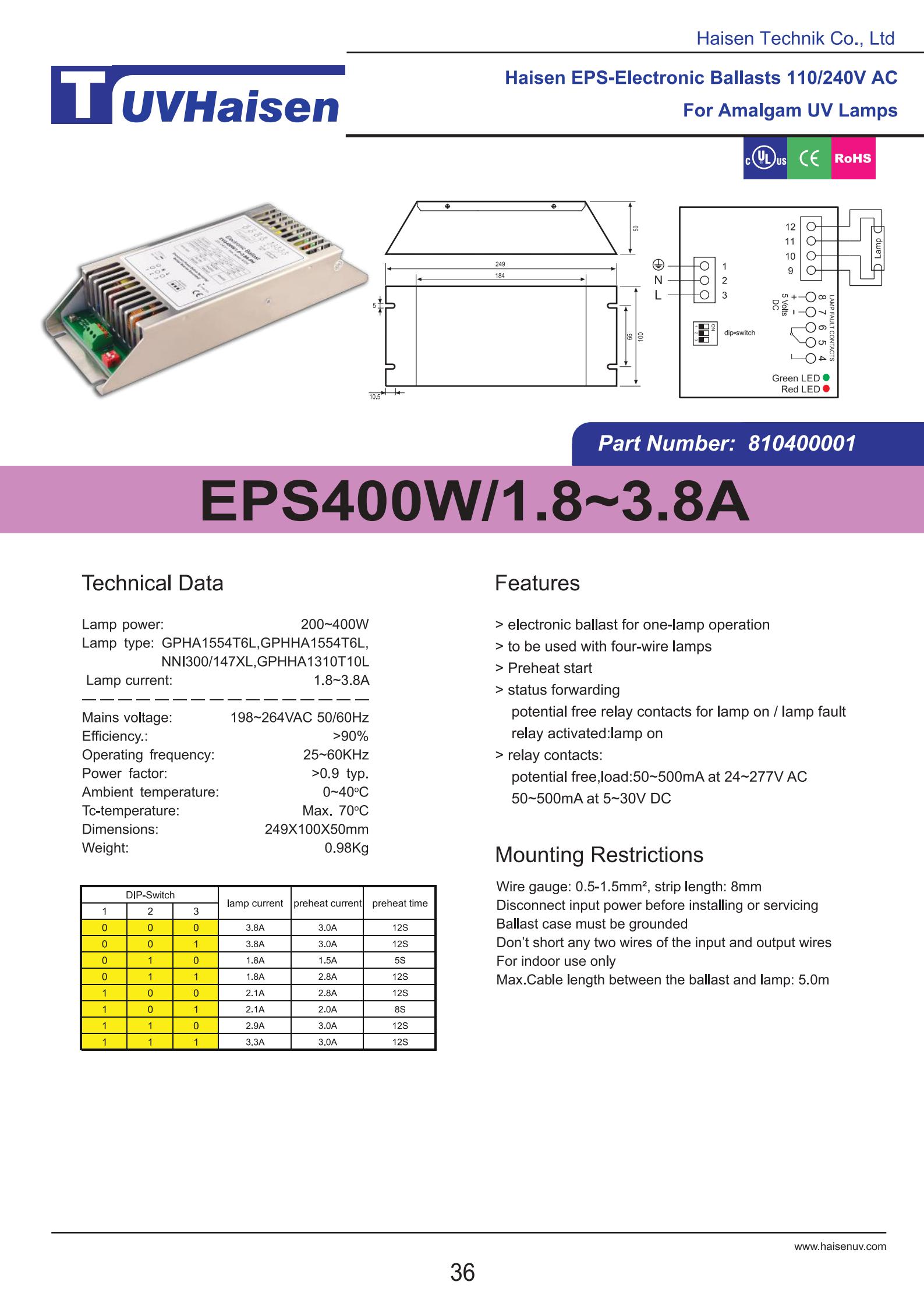

Technical Data

Lamp power: 200~400W
Lamp type: GPHA1554T6L,GPHHA1554T6L,
Lamp current: 1.8~3.8A
— — — — — — — — — — — — — — — —
Mains voltage: 198~264VAC 50/60Hz
Efficiency.: >90%
Operating frequency: 25~60KHz
Power factor: >0.9 typ.
Ambient temperature: 0~40oC
Tc-temperature: Max. 70oC
Dimensions: 249X100X50mm
Weight: 0.98Kg

Mounting Restrictions

Wire gauge:0.5-1.5mm², strip length: 8mm
Disconnect input power before installing or servicing
Ballast case must be grounded
Don’t short any two wires of the input and output wires
For indoor use only
Max.Cable length between the ballast and lamp:5.0m
