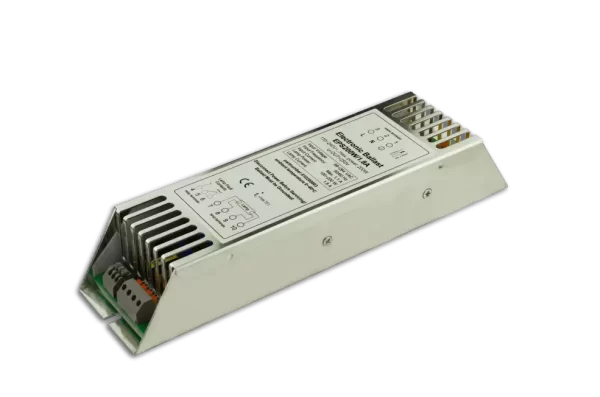

UV BALLAST EPS200W/1.8A (110-240V)


Haisen UV Ballast Application

UV Ballast EPS200W/1.8A for Amalgam UV lamps use in uv water, air and surface purification and disinfection system for Residential and Commercial market.


Haisen UV Ballast Advantages

> Low repair rate make you no longer worry about the after sales problem.

> Competitive price can save your cost for manufacture your uv desinfection system.

> CE,UL,CUL approval the stable quality and performance.

> Standard or customized version can be provided on customer  request

> 110-240V Global universal voltage



> electronic ballast for one-lamp operation

> to be used with four-wire lamps

> Preheat start

> status forwarding

potential free relay contacts for lamp on / lamp fault

relay activated:lamp on

> relay contacts:

potential free,load:50~500mA at 24~277V AC

50~500mA at 5~30V DC

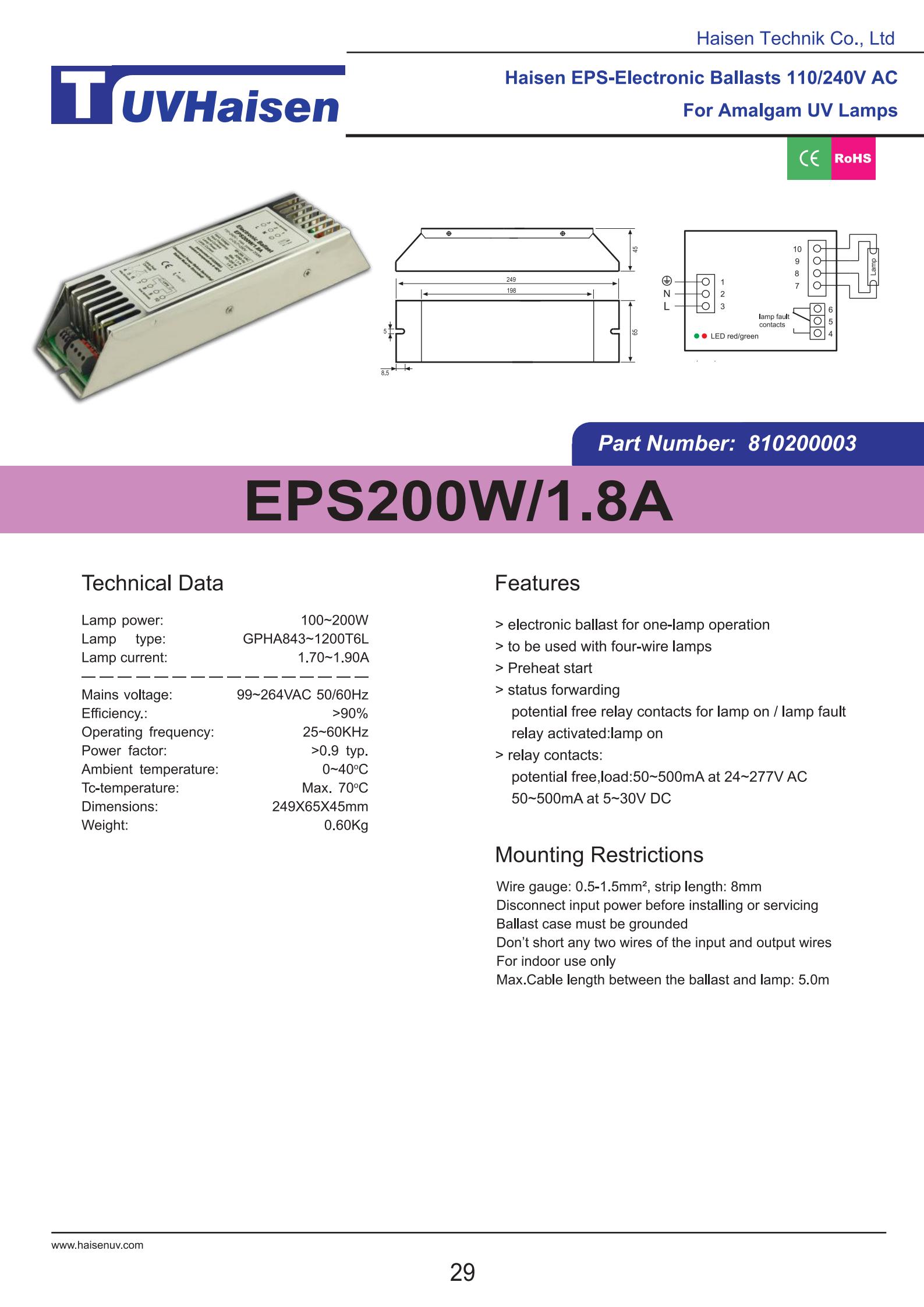

Technical Data

Lamp power: 100~200W
Lamp type: GPHA843~1200T6L
Lamp current: 1.70~1.90A
— — — — — — — — — — — — — — — —
Mains voltage: 99~264VAC 50/60Hz
Efficiency.: >90%
Operating frequency: 25~60KHz
Power factor: >0.9 typ.
Ambient temperature: 0~40oC
Tc-temperature: Max. 70oC
Dimensions: 249X65X40mm
Weight: 0.60Kg

Mounting Restrictions

Wire gauge:0.5-1.5mm², strip length: 8mm
Disconnect input power before installing or servicing
Ballast case must be grounded
Don’t short any two wires of the input and output wires
For indoor use only
Max.Cable length between the ballast and lamp:5.0m
