ultraviolet ballast EPS40W/425A/S ADV (110-240V) with UV Sensor

Description

ultraviolet ballast Application

ultraviolet ballast EPS40W/425mA/S with UV sensor and digital tube can be  used in uv water purification and disinfection system in Residential and Commercial market.



ultraviolet ballast Advantages

> Low repair rate make you no longer worry about the after sales problem.

> Competitive price can save your cost for manufacture your uv desinfection system.

> CE,UL, CUL approval the stable quality and performance.

> Standard or customized version can be provided on customer request

> 110-240V Global universal voltage



Features

> for one-lamp operation, preheat start
> to be used with four-wire lamps
> UV Sensor with 254nm,0~20000uW/cm2

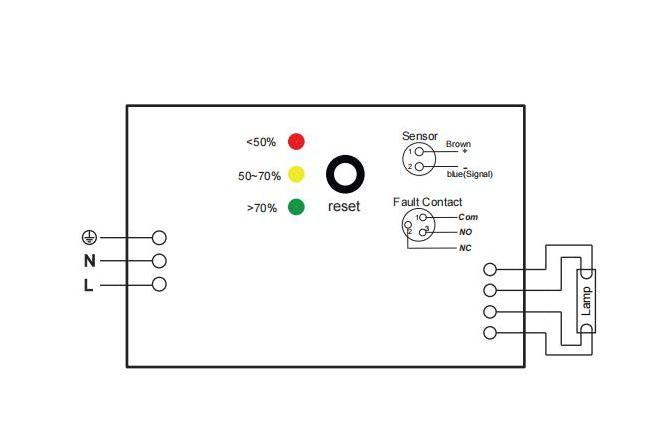

> UV intensity status indication via LED indicators and fault contact
green led: >70%; yellow led: 50~70%; red led: <50%
> LCD display: sensor status, lamp status, temperature of box
> status forwarding
potential free relay contacts for UV intensity
repay activeted: <50% of UV intensity
potential free, load: 50~500mA at 24~277V AC or 5~30V DC
> reset relative value of UV intensity to 100%
> UV sensor: HS1-I, HS2-I, HS3-I

Technical Data

Lamp power: 40~100W
Lamp type: GPH212~843T5L/HO
TUV36T5L/HO,TUV75W
Lamp current: 0.75~0.85A
— — — — — — — — — — — — — — — —
Mains voltage: 99~264VAC 50/60Hz
Efficiency.: >90%
Operating frequency: 40~60KHz
Power factor: >0.9 typ.
Ambient temperature: 0~40oC
Tc-temperature: Max. 70oC
Dimensions: 245X150X53mm
Weight: 2.0Kg

Press the buttom more than 8 seconds for the
default value Setting:
01: Set the relative value of UV intensity to 100%
02: Lamp life 9000 hours

Mounting Restrictions

Disconnect input power before installing or servicing
Ballast case must be grounded
Don’t short any two wires of the input and output wires
Max.Cable length between the ballast and lamp: 3.0m
For indoor use only
