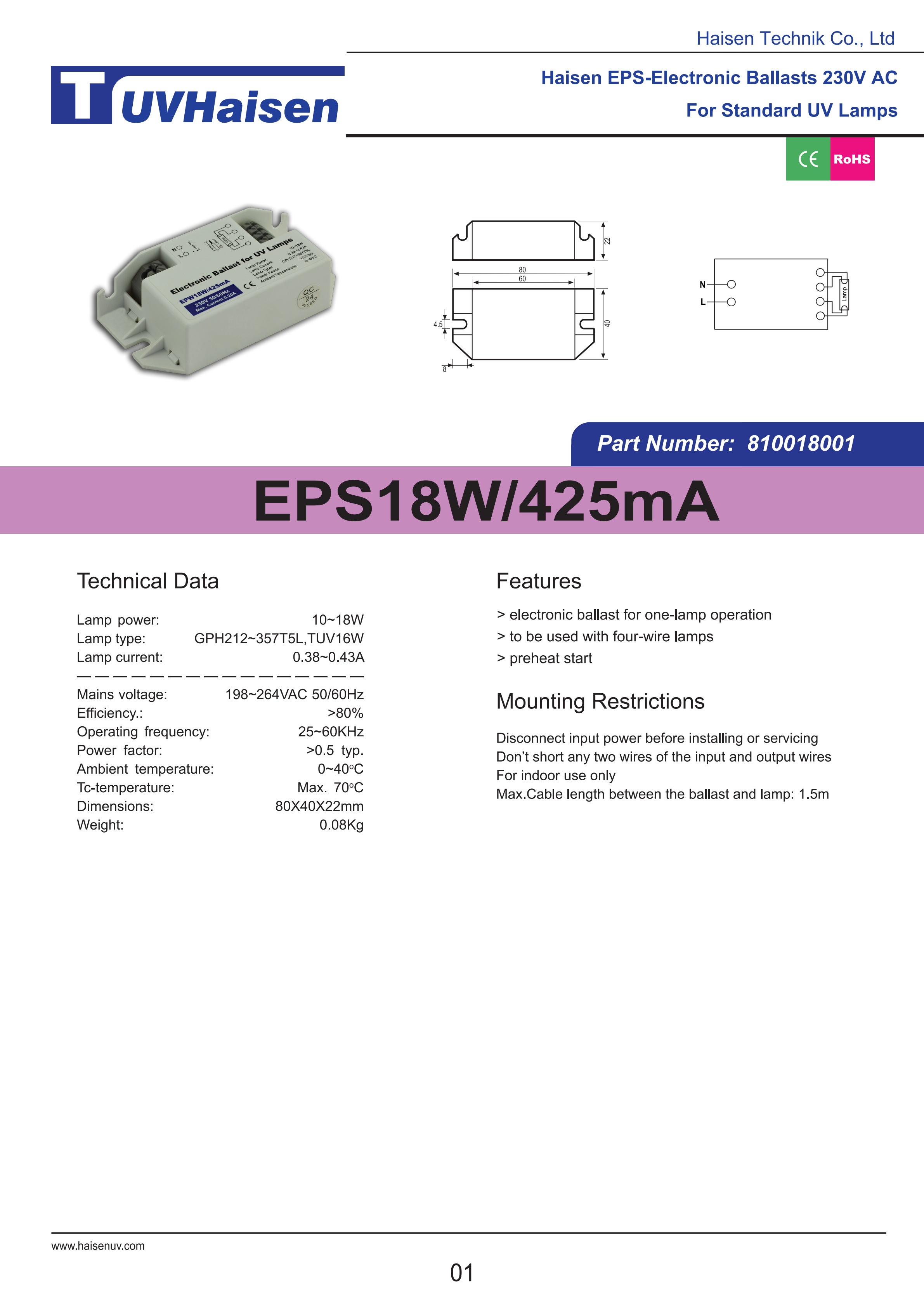

UVC Ballast EPS18W/425mA (230V)

UVC ballast Application

UVC ballast EPS18W/425mA can match GPH212~357T5L or TUV16W low-pressure UV lamps. It can be used in air and surface as well as water purification and disinfection system for domestic and commercial market. 230V input voltage, for one UV lamp

UVC ballast Advantages

> Low repair rate make you no longer worry about the after sales problem.

> Competitive price can save your cost for manufacture your uv desinfection system.

> CE approval the stable quality and performance.

> Standard or customized version can be provided on customer request

Features

> electronic ballast for one-lamp operation
> to be used with four-wire lamps
> preheat start

UV Ballast Technical Data
Lamp power: 10~18W
Lamp type: GPH212~357T5L,TUV16W
Lamp current: 0.38~0.43A
— — — — — — — — — — — — — — — —
Mains voltage: 198~264VAC 50/60Hz
Efficiency.: >80%
Operating frequency: 25~60KHz
Power factor: >0.5 typ.
Ambient temperature: 0~40^o C
Tc-temperature: Max. 70^o C
Dimensions: 80X40X22mm
Weight: 0.08Kg

Mounting Restrictions
Disconnect input power before installing or servicing
Don’t short any two wires of the input and output wires
For indoor use only
Max.Cable length between the ballast and lamp: 1.5m
