Haisen UVC sensor HS1-U


Haisen UVC Sensor Application

Haisen waterproof UVC sensor HS1-U serves as robust, long-time stable measuring head for the precise measurement of UVC irradiances in UV water disinfection systems and UV Air purification systems. A superior long-time stability and corrosion resistance is achieved by the selection of suitable materials.

The sensor can be directly connected to the UV-Monitor HM-1, HM-2, HM-3, HM-4 or HM-5 via a 2.5 meter long (standard) shielded cable. Thus integration into UV-lamp monitoring, adjustment and control is possible.


Technical Data

Resolution 0.01mW/cm2
Weight: 150g
Operating temp.: 0~60oC
Storage temp.: -10~70oC
Humidity: <80%
Body: Stainless steel 316L
Max. pressure: 10bar
Cable: Length 2.5m(longer on request)

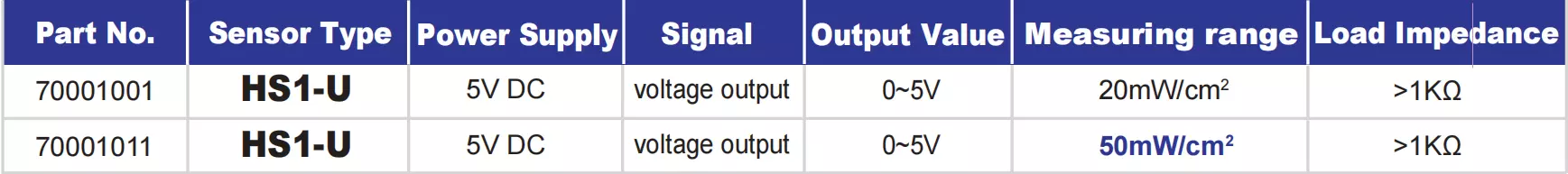

UVC Sensor HS1-U

UVC Sensor HS1-U catalog
