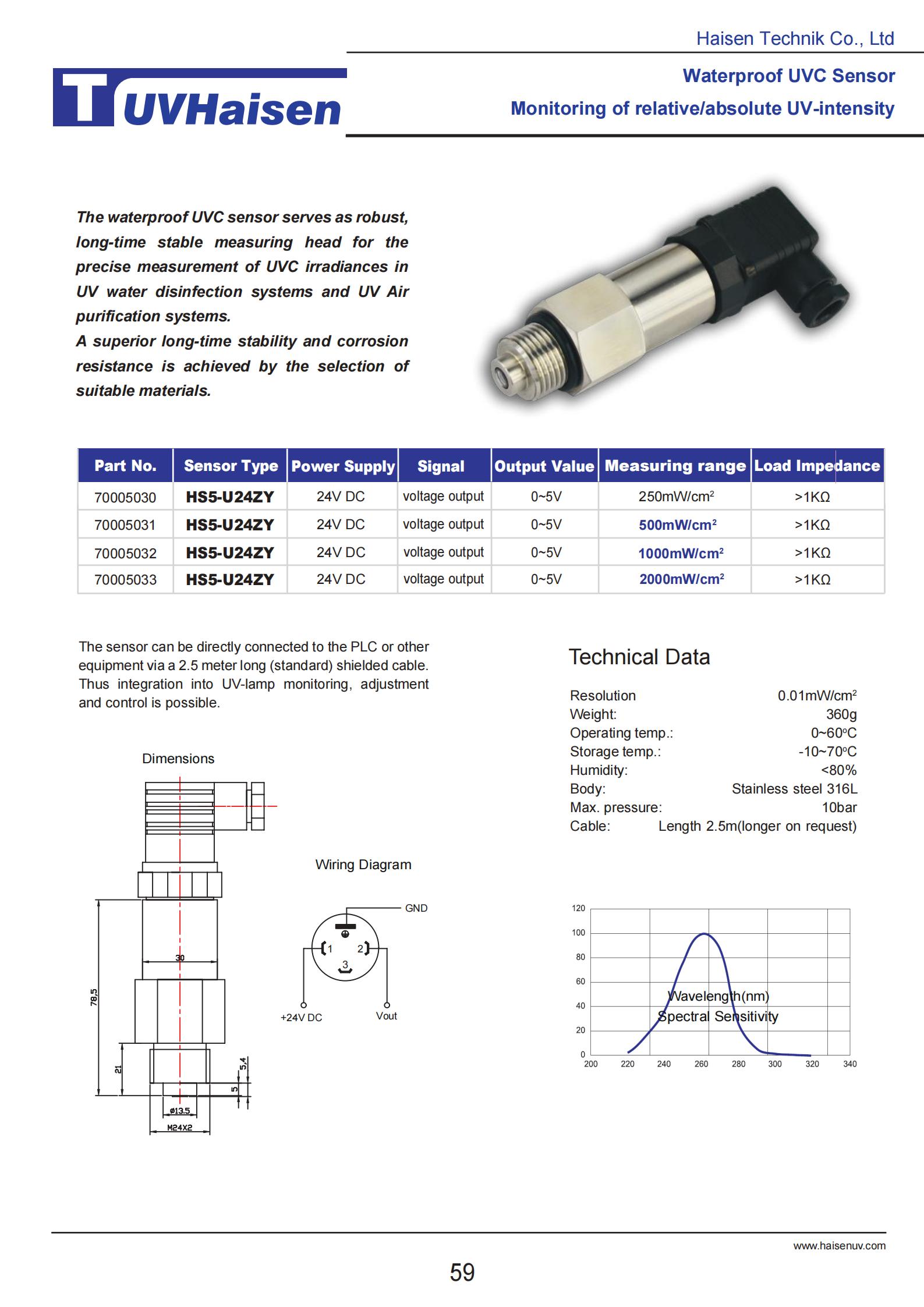

Haisen UV sensor HS5-U24ZY

Description

Haisen UV Sensor Application

Haisen waterproof UV sensor HS5-U24ZY serves as robust, long-time stable measuring head for the precise measurement of UVC irradiances in UV water disinfection systems and UV Air purification systems. A superior long-time stability and corrosion resistance is achieved by the selection of suitable materials.

The sensor can be directly connected to the PLC or other equipment via a 2.5 meter long (standard) shielded cable. Thus integration into UV-lamp monitoring, adjustment and control is possible.



Technical Data

Resolution 0.01mW/cm2
Weight: 360g
Operating temp.: 0~60oC
Storage temp.: -10~70oC
Humidity: <80%
Body: Stainless steel 316L
Max. pressure: 10bar
Cable: Length 2.5m(longer on request)

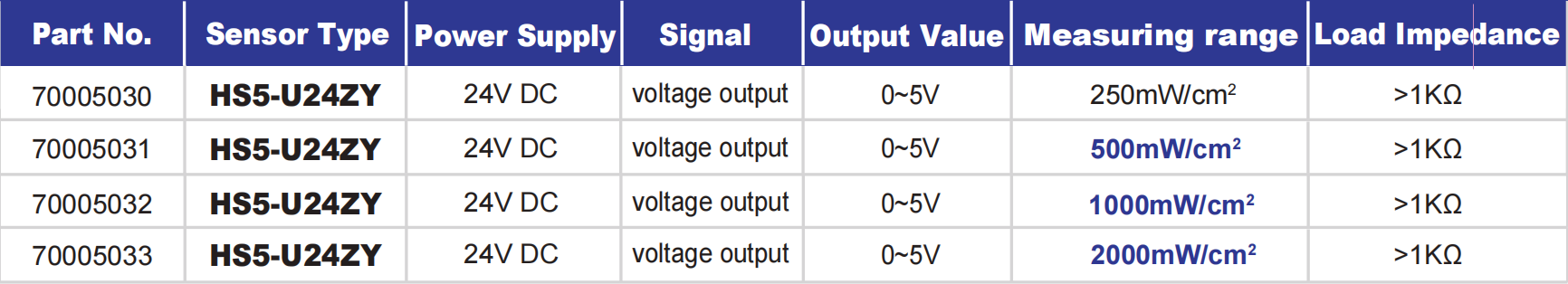

UV sensor HS5-U24ZY test UVC lamp irradiances

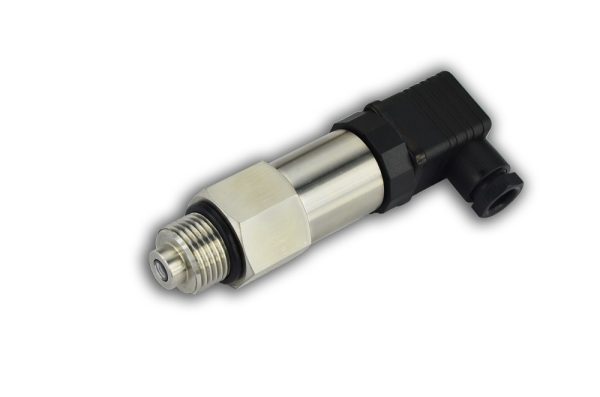

 UV sensor HS5-U24ZY test  UVC lamp irradiances
